Vision Plus – Coaxial Coupler

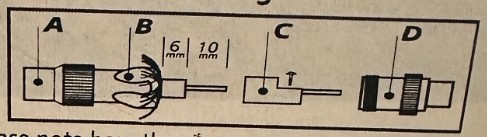

A simple coaxial TV Coupler, by Vision Plus. Please note how the plug comes apart, using the diagram above. Remove 16mm of white outer sheath. Remove 10mm of the exposed braided copper wire and insulation.

Feed ‘A’ and ‘B’ over the cable. Pull back evenly the copper braided over ‘b’. IMPORTANT – The copper braiding MUST NOT TOUCH the central core. 4. Push on ‘C’ up to ‘B’ and secure with the small grub screw.

Do not over tighten. 5. Screw ‘A’ and ‘D’ together.
